Managing Access Rules

In MapStore, the Rules Manager is an administrative tool designed to manage GeoFence authorization rules on data published in GeoServer by providing a security control method for restricting access to GeoServer Workspaces, Layers and/or Services. Admin users can create and assign one or more authorization rules to allow or deny access to a specific User, Group of users, IP Range and more, with a high level of granularity.

As an admin user, it is possible to manage Rules for different GeoServer Instances by selecting the Managing Access Rules option from the button on the Homepage:

Manage Rules

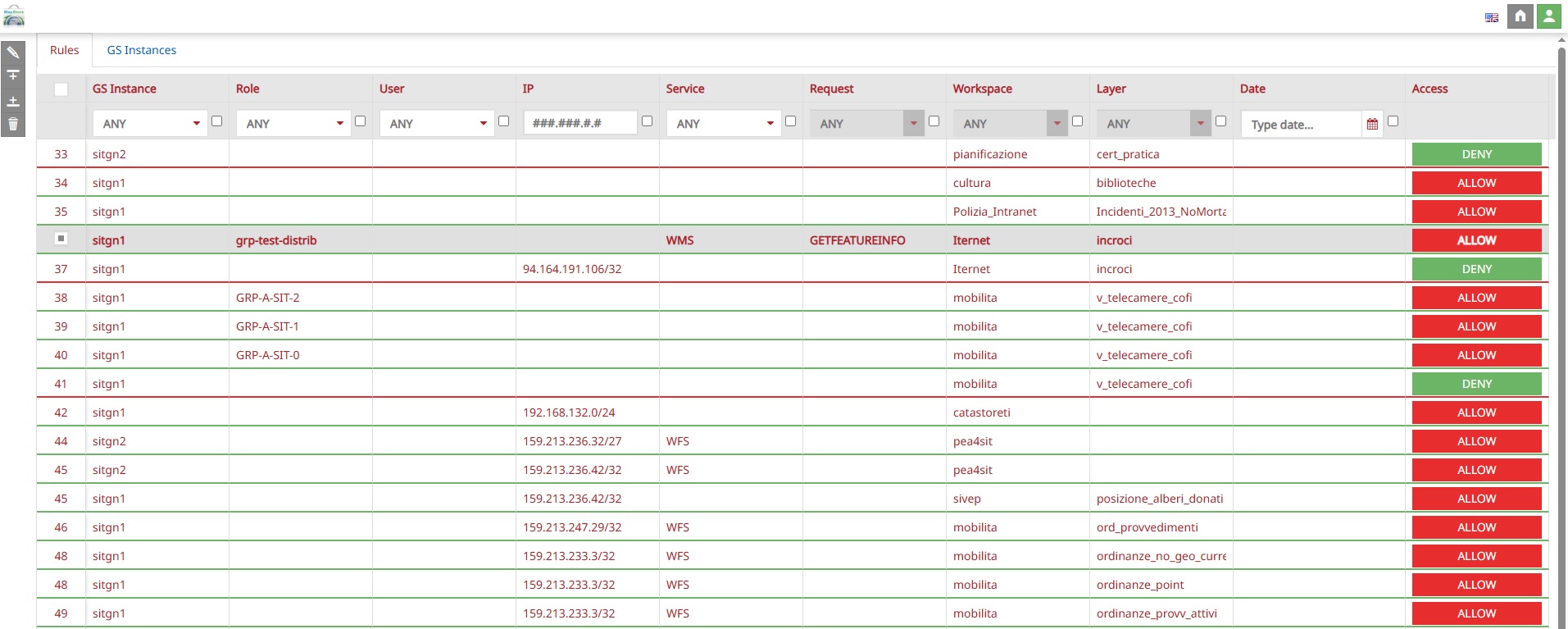

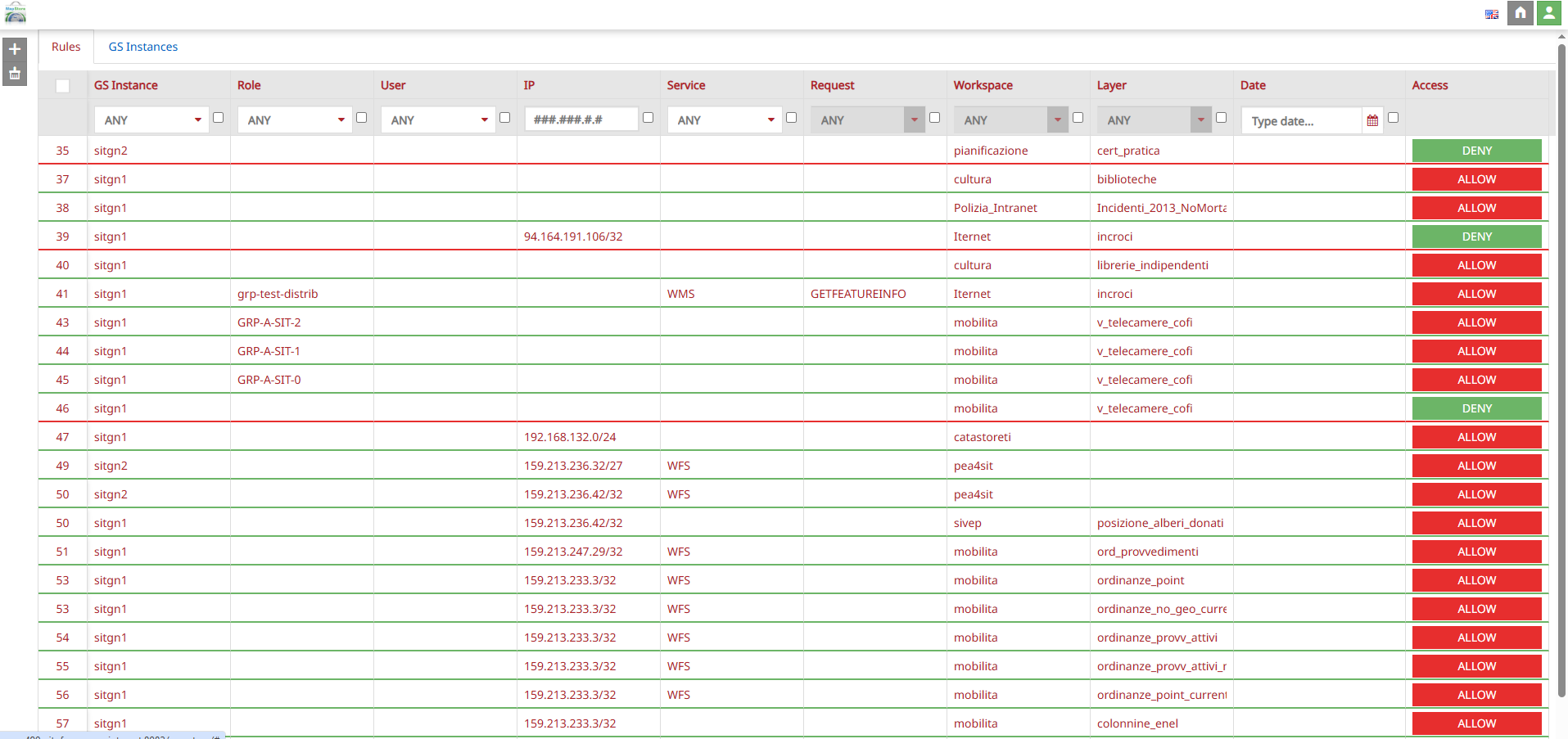

The Rules Manager page opens on the Rules tab, where the admin user can view all the available rules:

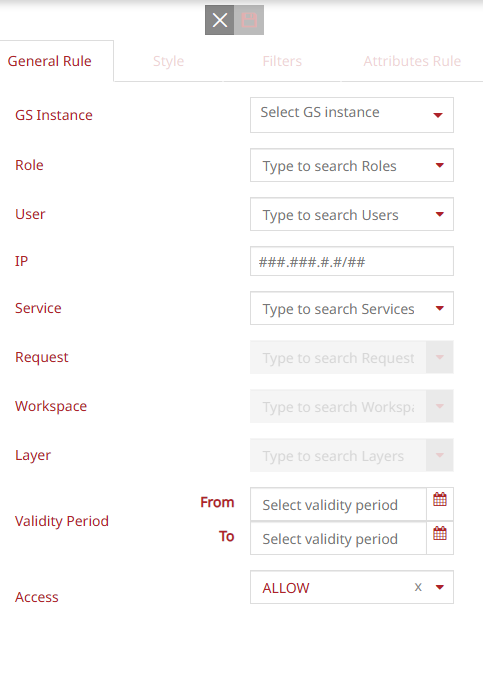

To Add a Rule, the user can click the button. A panel will open, allowing the user to create a new rule by providing the following information:

• Select the GS Instance: choose from the available GeoServer instances

• Select the Role: choose from the user groups available in MapStore.

• Select the User: choose from the users registered in MapStore.

• Add IP ranges: specify the IP ranges to grant access to the service, workspace, and/or layer.

• Select the Service: choose betweenWFS or WMS

• Select the Request: choose from DescribeLayer, GetCapabilities, GetFeatureInfo, GetLegendGraphic, GetMap and GetStyles

• Select the Workspace: choose from the workspaces available on the selected GeoServer instance.

• Select the Layer: choose from the layers available on the selected GeoServer instance.

• Add the Validity Period: specify the start and end dates for access to the service, workspace, and/or layer. The rule thus defined is be applied at run time only within the date period defined.

• Select the Access type: choose between ALLOW o DENY

Once all the rule information has been configured, it can be saved by clicking the button. The rule will be displayed in the rules list according to the assigned priority.

The Priority of a rule can be modified in two ways:

• Drag and drop the rule directly within the list

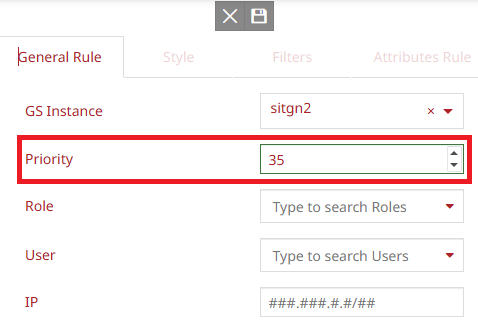

• Edit via panel: select the rule and click on button. The Priority option will appear in the panel and can be changed by entering the new value in the dedicated box.

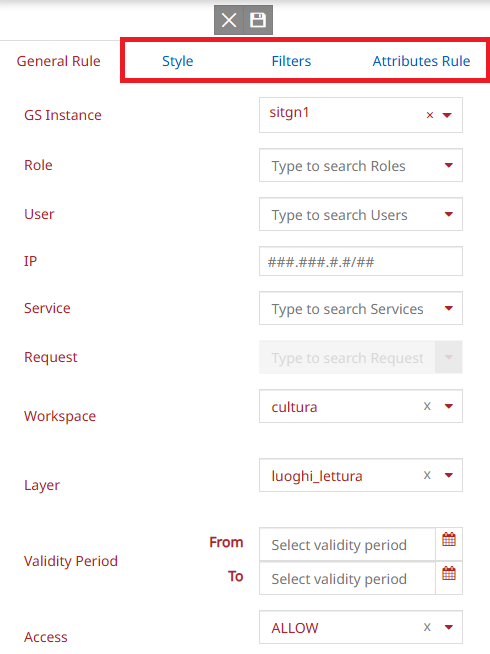

From the Rule panel, by adding the WorkSpace and the Layer, the user can also manage the auth rule with a finest granularity (the Rule Details) by specifying if it should be applied to a specific Style, to layer features matching a predefined Filters and/or to layer Attributes.

Managing Layer Access Style

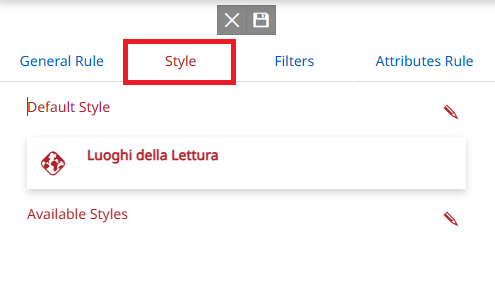

By selecting the Style tab, the user can choose which styles of the layer can be displayed within the rule. The user can select between the Default Style and the Styles Available for that layer in GeoServer by using the button.

Managing Layer Access Filters

By selecting the Filters tab, the user can apply access rules to the layer by adding one of the following filters:

• CQL Filter Read Rules: allows defining a CQL filter to control which features or records of the layer can be read.

• CQL Filter Write Rules: allows defining a CQL filter to control which features or records of the layer can be edited.

• Area of Interest: allows filtering the layer by selecting a specific area using the MapStore viewer: only layer features within the defined areas are affected by the permission rule.

Managing Layer Access Attribute Table

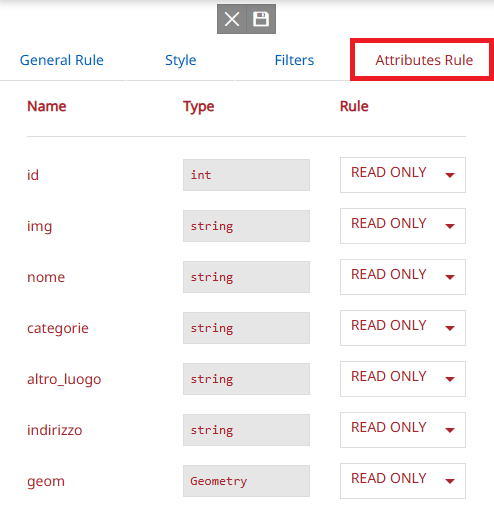

In the Attribute Table tab, the list of attributes of the layer is displayed. For each field, the user can select the access mode, choosing between: NAME, READ ONLY, and READ WRITE.

Filter Rules

It is possible to filter the rules for each category by selecting the available options from the corresponding dropdown menu.

Additionally, for each category, it is possible to display only the rules that explicitly include the selected option by clicking the corresponding checkbox.

GeoServer Instances

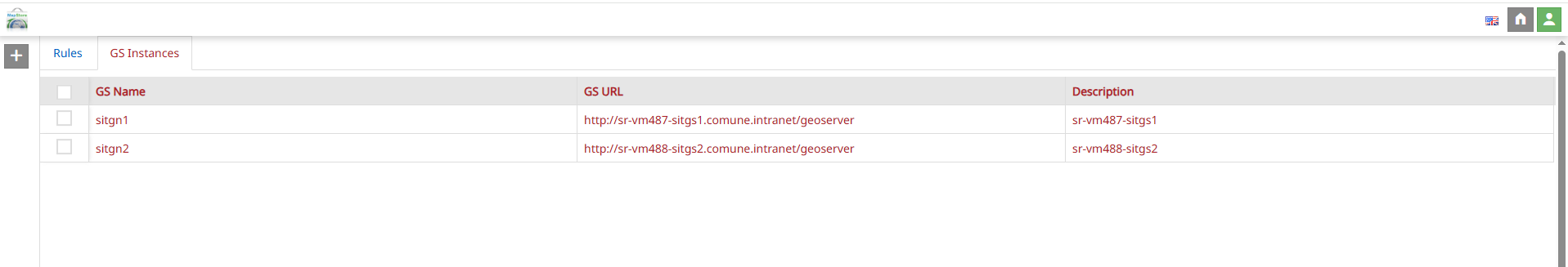

From the Rules Manager page, it is also possible to configure more than one GeoServer Instance on which to create access rules. To do this, the administrator can click on the GS Instances tab. Here, the admin user can view all the configured GeoServer instances:

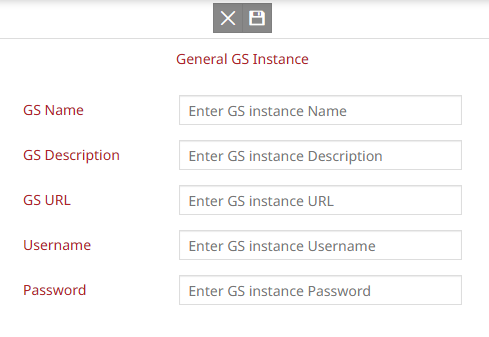

To Add a GeoServer Instance, the user can click the button. A panel will open, allowing the user to add a new instance by providing the following information:

• Enter a GS Name and a GS Description

• Add the GS URL

• Enter the GeoServer instance Username and the Password
